Hydra Power
Low Profile Utility Vehicles and Equipment for the
Mining Industry

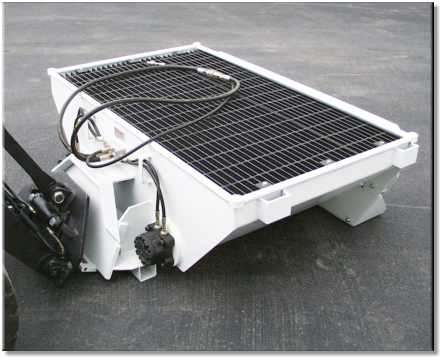

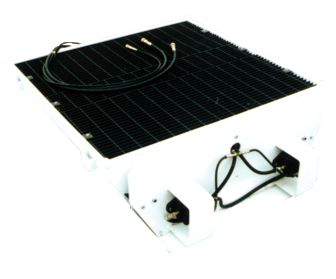

SD-4500 Scatter Duster
Specifications
Length: 80 Inches
Width: 64 Inches
Height: 22 Inches
Weight: 1,600 lbs.
Dust Capacity: 2,000 lbs.
Adj. Output: 0-400 lbs. / min.
Requirements: 12 to 20 GPM @ 1,500 to 2,500 psi
* Complete with 8ft. hydraulic
hose & quick couplers
Dust Entries in a Single Pass
•
One man operation
•
4 motors: 2 motors drive 5”
augers, 2 motors drive 13” flingers
•
Control valve controls speeds of
augers to vary output from 0-400
lbs. / minute
•
Heavy steel skid frame with cutout
for ejection tube
•
Grating on top to lay bags on
•
Large 5” Augers move material
through hopper better and prevent
cavitation
•
Options: Hinged steel cover
Frame with slots for forks
